Hungarian Power and Voltage System

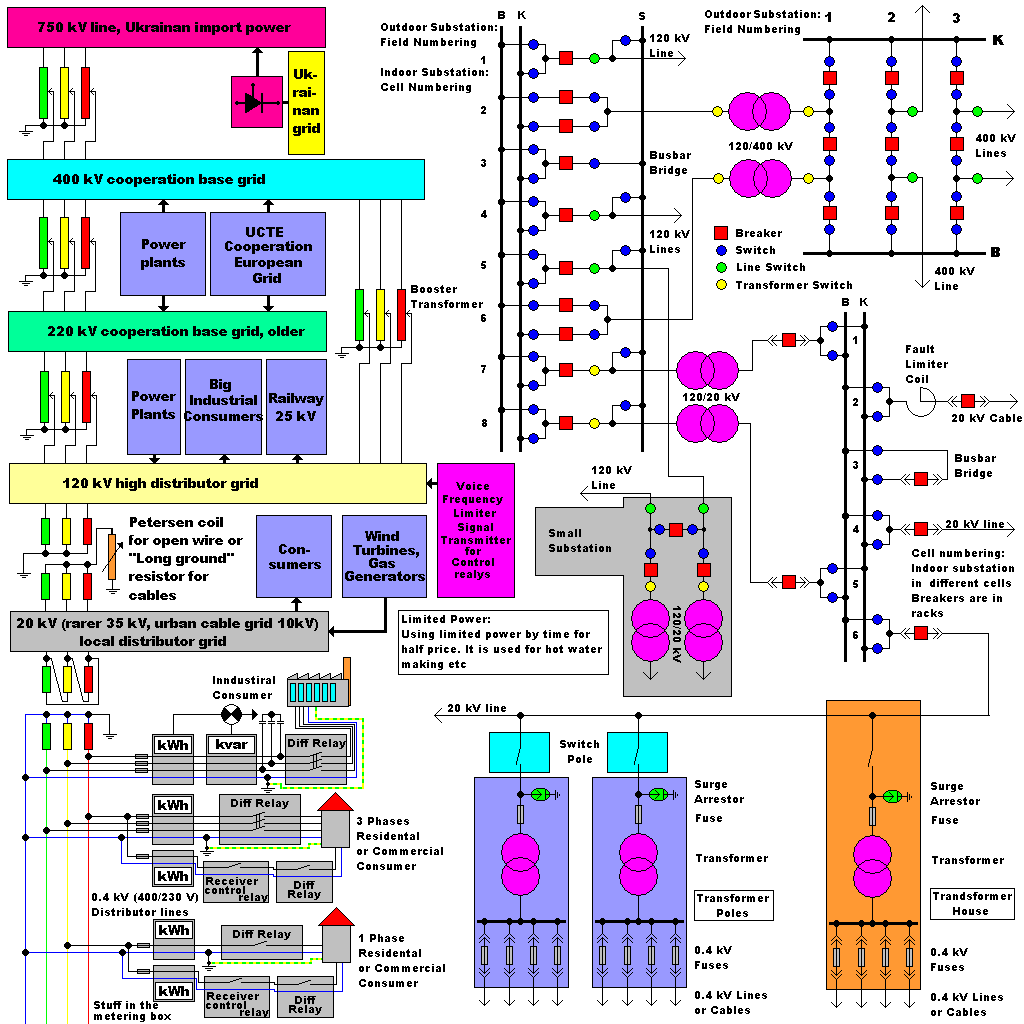

A general schematic from the Hungarian and European power and voltage level system.

Here you look the actual power traffic of Hungary at the moment in MegaWatt you should refresh this picture at every 5th minutes. The picture is on the Central Power Distributor's server (www.mavir.hu) which get the data from the substations. The translation: -Fogyasztás: Power using -Import: Import -Eltérés... : Difference from the import timetable -Horvátország: Croatia -Bécs: Vienna, I think, you understand the others.. The time is GMT + 1 hour winter time, summer time: +2 hours Purple line: 750 kV, Red lines: 400 kV, Green lines: 220 kV, Left blue line: Danube river, Right blue line: Tisa river,

Power Distributor Companies: Dédász (E-ON) = South Transdanubian Power Service Édász (E-ON) = North Transdanubian Power Service Démász = South Hungarian Power Service Émász = North Hungarian Power Service Titász (E-ON) = Trans-Tiszaian Power Service Elmü = Electric Works of area of Budapest www.eon.hu Bigger power plants: Power Plant near Danube, gas, 2206 MW Nuclear Power Plant of Paks, 1840 MW Power Plant near Mátra, coal, 812 MW Power Plant near Tisza, coal, 860 MW

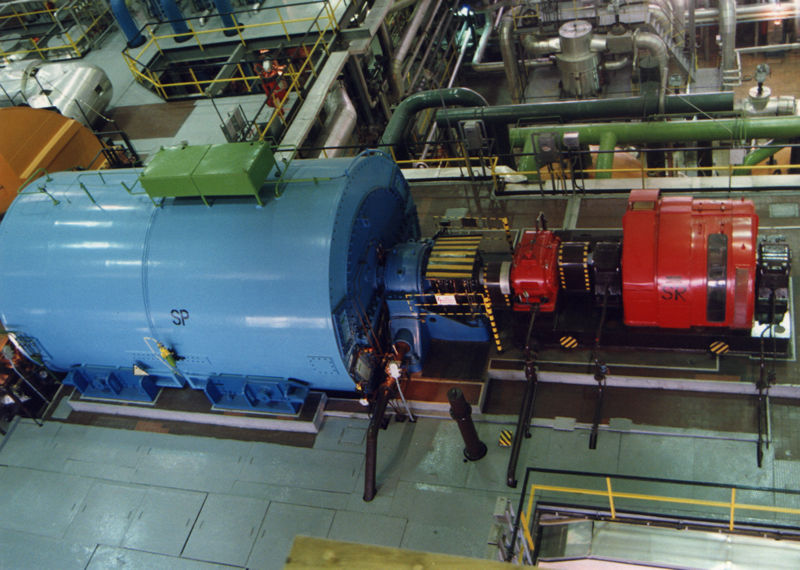

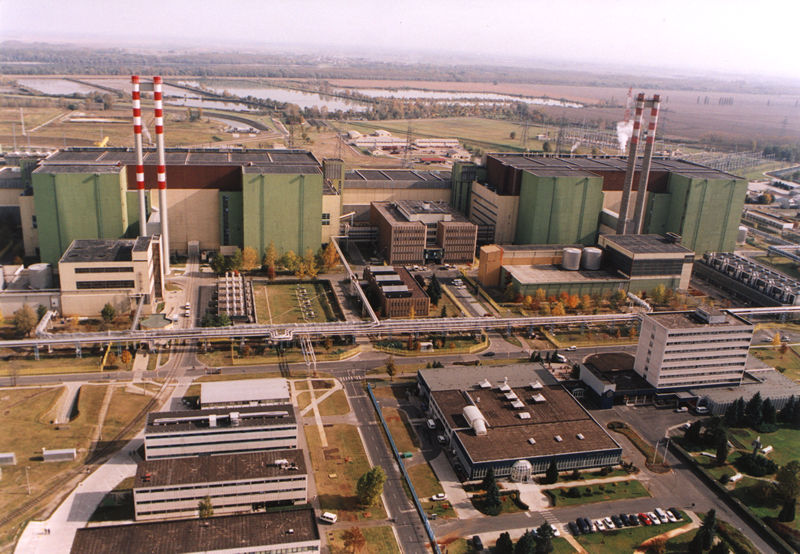

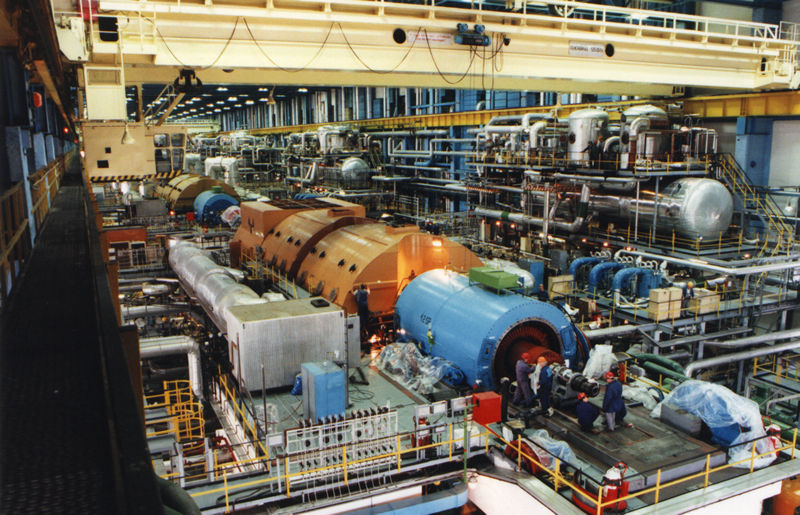

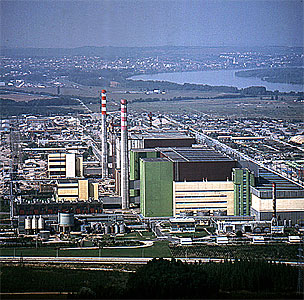

Nuclear Power Plant of Paks

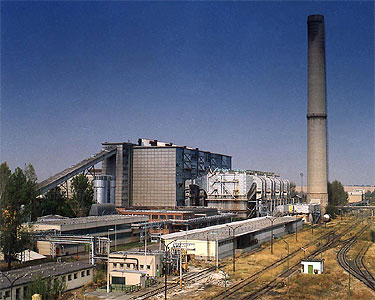

An oil-carbon power plant
