Locke: Hemingray or Brookfield?

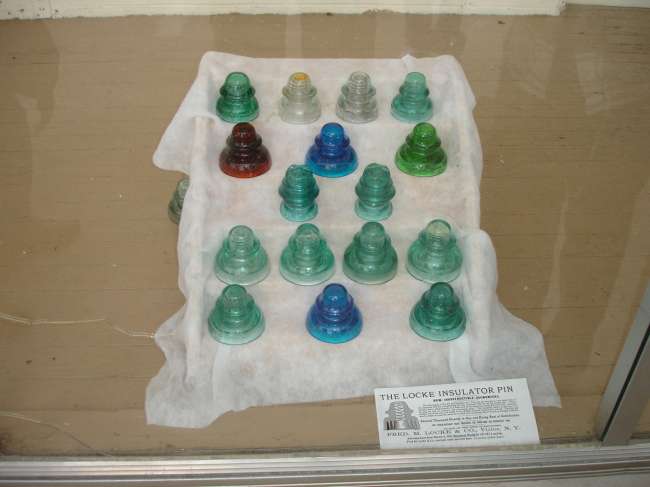

Photo of 2007 Locke: Hemingray or Brookfield? display
Photo by Richard Case

The Insulators

Left to Right, Top to Bottom:

Row 1: CD 287.2 BROOKFIELD [020], Wide dome variant, Aqua CD 287.2 LOCKE [010], Gray CD 287.2 LOCKE [010], Gray CD 287.2 BROOKFEILD [010], Narrow dome variant, Light Aqua	Row 4: CD 287.1 LOCKE [010], Light Aqua, Smallest Extension CD 287.1 LOCKE [010], Light Aqua, Large Extension CD 287.1 LOCKE [010], Light Aqua, Larger Extension CD 287.1 LOCKE [010], Light Aqua, Largest Extension
Row 2: CD 287.1 LOCKE [010], Red Amber, No Extension CD 287.1 LOCKE [010], Peacock Blue, No Extension CD 287.1 LOCKE [010], 7-up Green, No Extension	Row 5: CD 287.1 LOCKE [010], Light Aqua, No Extension CD 287.1 LOCKE [010], Peacock Blue, No Extension CD 287.1 LOCKE [010], Aqua, No Extension
Row 3: CD 204 LOCKE [010], Blue Aqua CD 204 LOCKE [010], Light Aqua

Copy at the bottom of display is a copy of an advertisement from the March 4, 1893 Electrical World, showing a CD 287.2, and advertising the Fred M. Locke & Co. steel pin with cast iron base.

Some Additional Facts

The CD 287.1 LOCKE [010] pieces in Red Amber, Peacock Blue, and 7-up Green are known to have been manufactured by Hemingray.
All CD 287.1s, as well as the CD 204s, carry the May 22, 1894 patent date
The "F. M. LOCKE & CO." was a partnership that lasted from November 14, 1892 to May 13, 1895. The "& CO" was dropped from embossings after the partnership ended.
A March 4, 1893 ad (as shown at the bottom of the display) depicts the CD 287.2
A March 10, 1894 ad depicts the CD 287.
There is one CD 287.1 listed in the price guide that has a blotted out "& CO".
There is one CD 287 listed in the price guide [070] that has a "& CO" in the embossing, not blotted out
Many CD 287s are listed in the price guide with blot outs of "& CO" or "F.M. LOCKE & CO".
The Brookfield CD 287.2s do not have a patent date listed, but say "PATENTS PENDING"
The Locke CD 287.2s have the May 22, 1894 patent date, but do not say "& CO" (nor is there room in the embossing for a blot out of "& CO").

Study Observations

The CD 204 insulators were mold mates, i.e. made in the same mold
The CD 287.2 LOCKE insulators were mold mates.
There were several mold mates among the CD 287.1s. Some colored specimens matched molds with some of the aqua specimens. Some colored specimens matched molds with other colored specimens. Some aqua specimens matched other aqua specimens with different skirt extension lengths.
Embossing style matched between the CD 287.2 LOCKEs, the CD 204s, and all the CD 287.1s. A number of insulators known to have been made by Hemingray were also brought, and the embossing styles were compared. Hemingray embossing was consistently fine and angular, especially as observed in the "&". Brookfield embossing was noticeably coarser and rounder. The CD 287.2 LOCKE, CD 204, and CD 287.1 embossings were consistent with the known Hemingray specimens.
There were 5 different observed skirt lengths for the CD 287.1s. This ranged from no extension on all of the colored and some of the aqua specimens, to 4 extension lengths on the aqua insulators. Extensions were observed on the light aqua pieces only -- the darker aqua pieces did not have extensions.

Additonal Observations

Paul Greaves reports that ALL CD 287s have RB {MLOB} and appear to be Brookfield made. Note that a [070] specimen has not been observed and thus may be different.
Bill Meier reports that the CD 287.1 listed in the price guide with a blotted out "& CO" may be in error. His records indicate he had reported this insulator, but that upon closer examination it is probably an unlisted CD 287 embossing.

Conclusions

All "& CO" embossed units were manufactured by Hemingray, including all CD 204s, and all CD 287.1s.
The CD 287.2 LOCKE was made by Hemingray.

Still Up For Debate

The Timeline Originally, it was thought that the CD 287.2 was introduced by Fred Locke around 1893. The narrow dome variant was probably first, then the wide dome variant with slightly extended middle skirt was an improvement. The CD 287.1 was introduced some time after May 22, 1894, and continued in production until around the time of the dissolution of the partnership in mid-1895. The CD 287 was then produced for a number of years. However, there are a few problems with that theory:

The CD 287.2 LOCKE does not bear "& CO" in the embossing, and does include the May 22, 1894 patent date. It was obviously made after mid-1894, and probably after mid-1895 when the partnership ended. That could mean that it was made after production of the CD 287.1s had ceased.
Ads for the CD 287.1 appear well before the patent date in 1894. This would appear to be early enough to overlap the supposed introduction of the CD 287.2.
Many of the presumably Brookfield made CD 287s have a blot out of "& CO". Were these molds made by Brookfield (which would contradict our theory that all "& CO" insulators are Hemingray), or could they have been Hemingray molds converted by Brookfield (in which case, why change the embossing style while blotting out the "& CO"?)

Alternate Timeline CD 287.1 was introduced, manufactured by Hemingray, sometime around mid 1894. About a year later, Locke had Hemingray make the CD 287.2. At about the same time or a little thereafter, Locke switched to Brookfield, and they made the narrow dome variant of CD 287.2. A little thereafter, they made the wide dome variant. Brookfield obtained the CD 287.1 molds originally used by Hemingray, reworked them into the CD 287 (causing some blotouts to remain visible), and subsequently continued to make this shape. There's a couple problems with this theory, too:

A March 4, 1893 ad depicts the CD 287.2
If Brookfield made the CD 287.2 after May 22, 1894, why didn't they emboss this patent date on the insulator?

The correct answer is probably neither of these, but some combination of the two, with perhaps some overlap in production dates.

Continuing Research

If you have a CD 287 LOCKE [070] (which has the "F.M.LOCKE & CO" marking, not blotted out), we would love to see it. Also, if you have a CD 287.1 LOCKE [020] (which has the "& CO" blotted out), we'd like to see that too. Both of these pieces could give meaningful clues as to the topics discussed here.

Many Thanks

to those who contributed insulators for examination, and who discussed the questions surrounding these insulators:

Andrew Gibson
Elton Gish
Paul Greaves
Bill Meier
Bob Stahr
Ron Yuhas
