A common problem with standard shelves is for them to be further apart vertically than the height of insulators (aside from multiparts and suspensions). This makes for a lot of wasted space above the insulators on each shelf. If you can't afford a fancy custom display unit, and aren't allowed (or don't want) to attach additional shelves, this could be a useful alternative. In this case, the existing shelves are a built-in unit in an apartment.

I purchased three pieces of "Top Choice" white pine lumber at Lowe's (48 inches long, 12 inches wide, 1 inch thick), for $5.50 each. (I could have bought one 12-foot piece instead, but it would have been more awkward to transport.) A wide variety of different sizes of wood are available for different shelf dimensions. Each of my three existing shelves is 34 inches long, 12 inches wide, 1 inch thick, and 15 inches apart.

Each of these units stands freely on one of the shelves, doubling the display space by splitting each shelf in half vertically. I made them a couple of inches shorter than the existing shelves' length, so they'd be easier to get in and out.

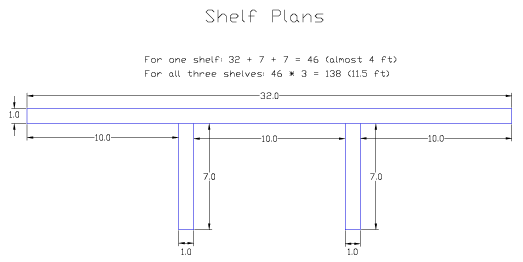

Here is a GIF of the AutoCAD drawing I created for my plans. The dimensions would of course vary for different circumstances. A full-page PDF file is also available.

Shelf Plans

Thanks to Chris S. for helping me cut the boards and screw the pieces together, since I don't have many tools. We used "Painter's Touch" primer and white spray-paint to make them match the existing shelves.

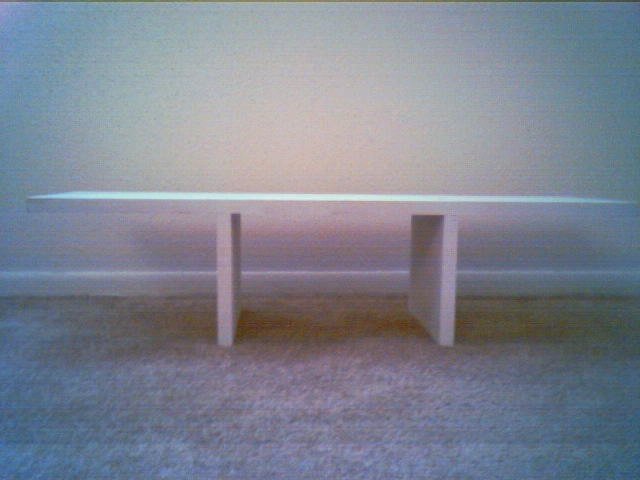

one completed shelf

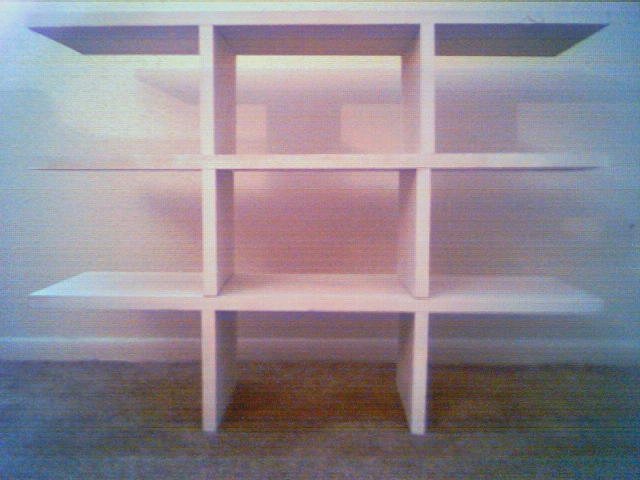

all three shelves, stacked up

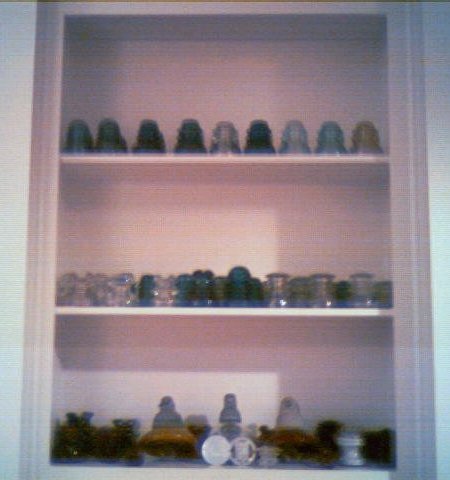

the shelving unit, 'before'

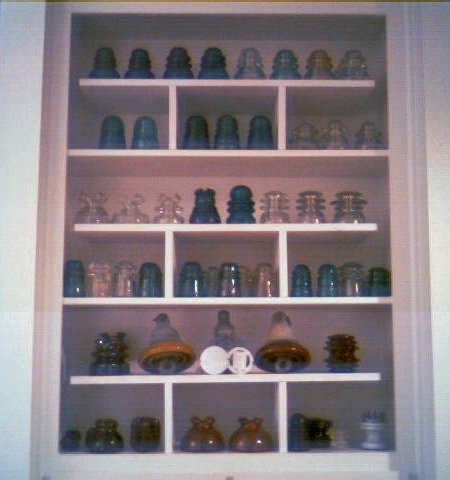

the shelving unit, 'after'

Tada! More effective use of space, with room to put twice as many insulators 'up front'.
