Iowa Street

Insulators Home > 'In Action' Line Photos > Beaumont, TX > Iowa Street

Entergy's poles
located along Iowa Street and nearby
Captions from Pat Scott
January/February 2004

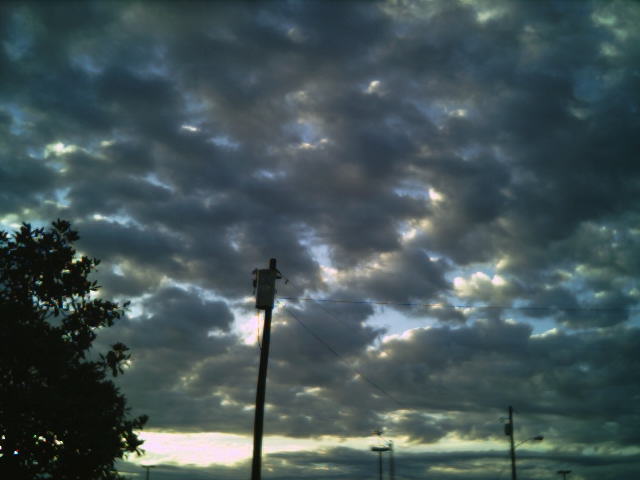

2.4 kV transformer on pole

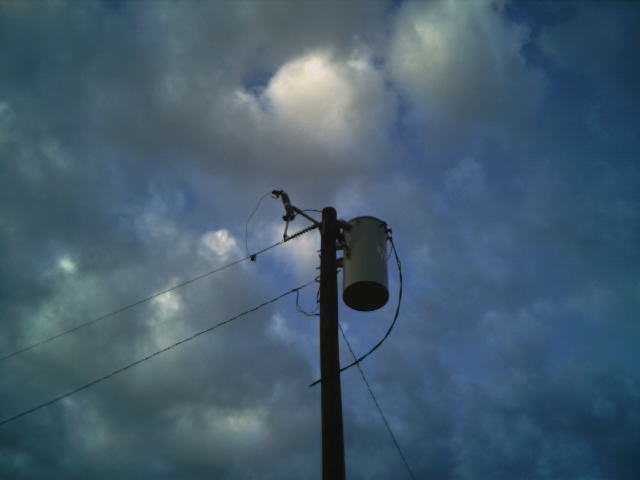

2.4 kV transformer on pole (same)

2.4 kV transformer on pole (same)

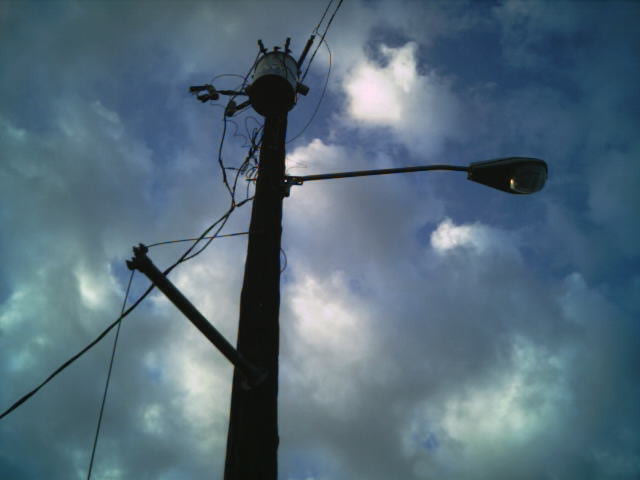

transformer and streetlight on pole

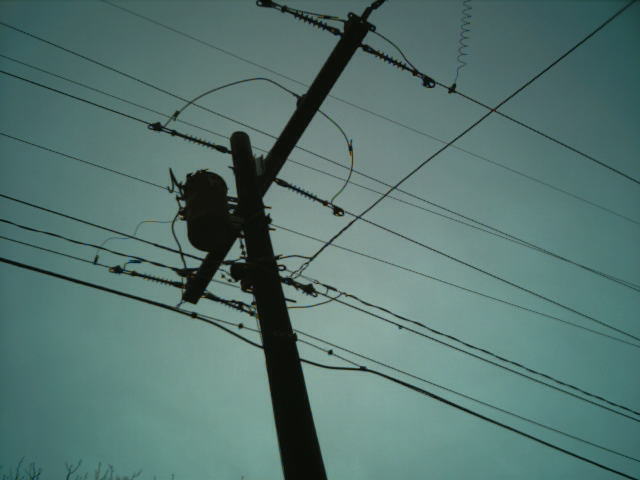

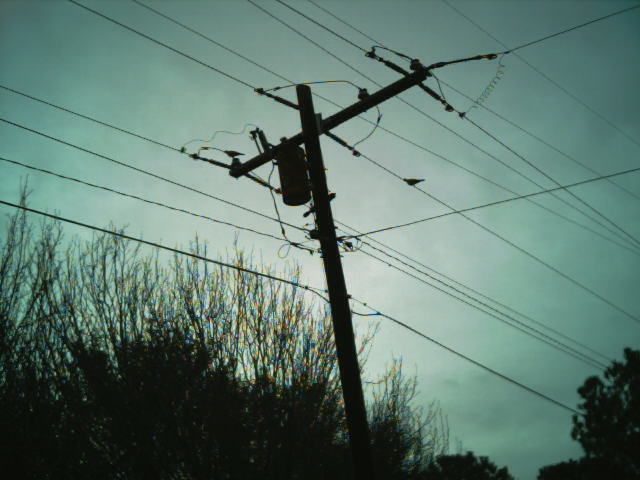

Busy three phase pole with single phase transformer and single phase branch.

different view of previous pole

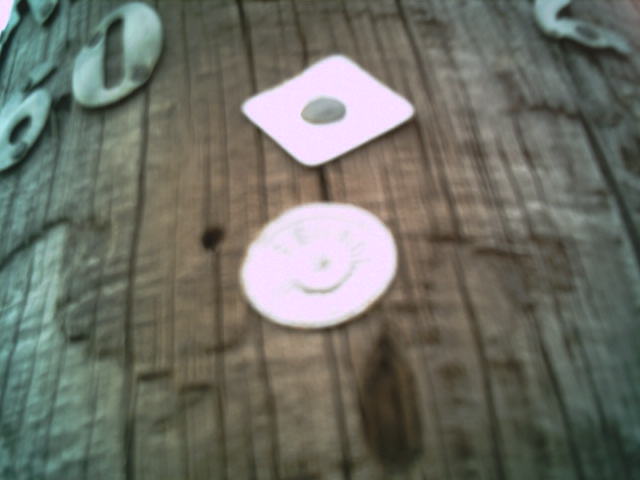

pole inspection tags

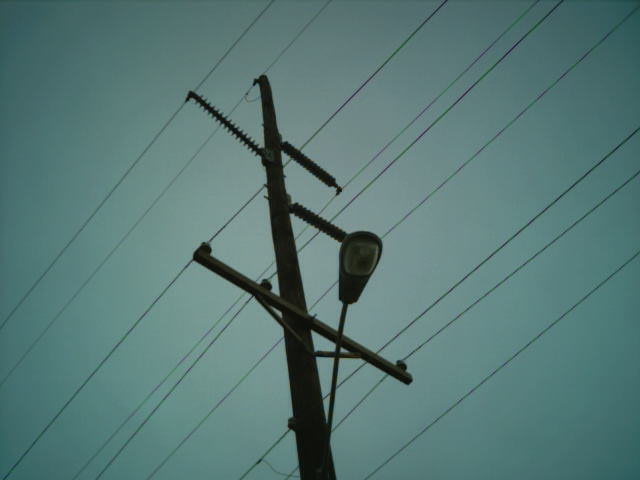

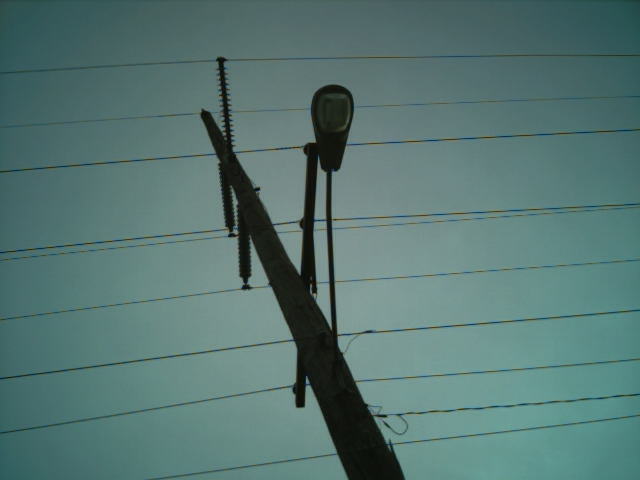

69 kV (?) transmission pole with streetlight

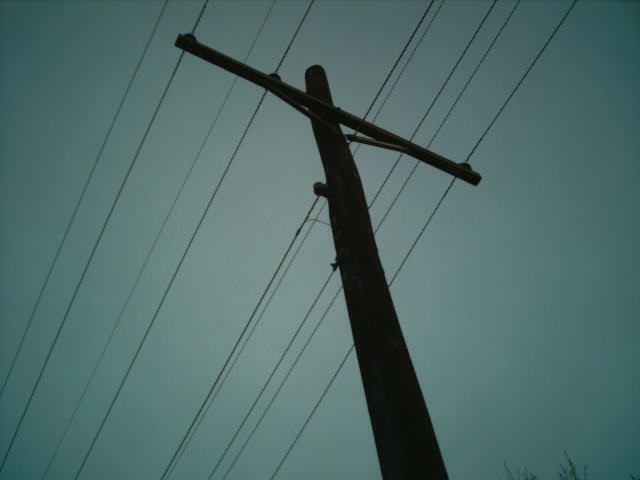

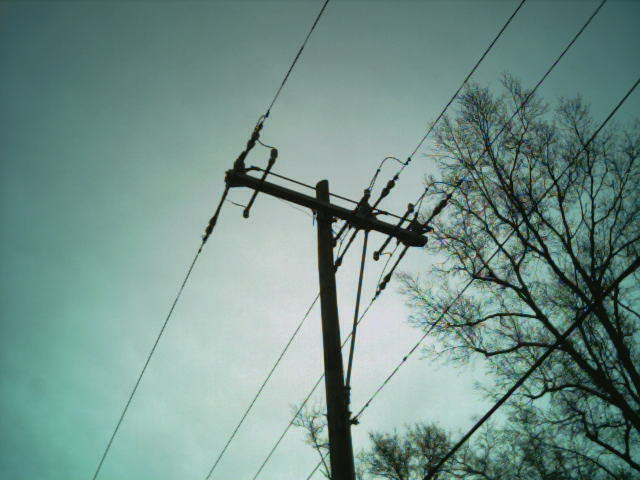

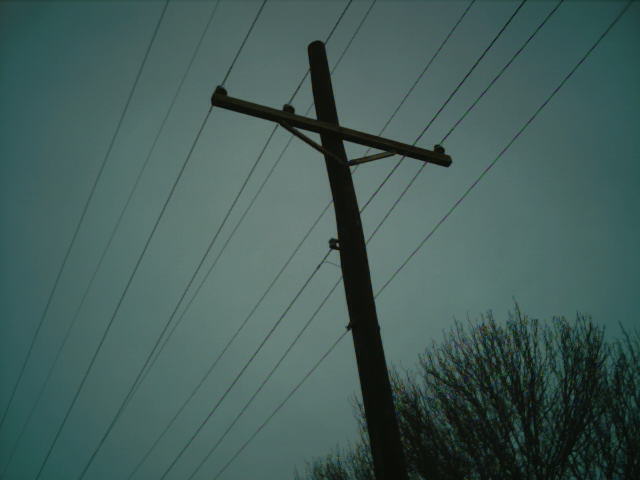

single-crossarm pole

single-crossarm pole

69 kV (?) transmission pole with streetlight

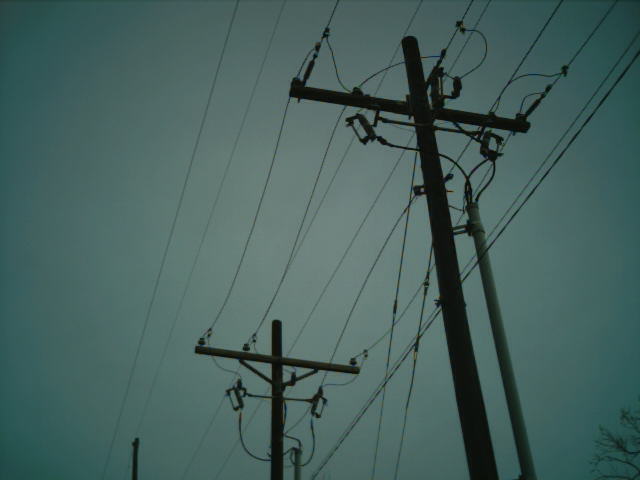

Two riser poles with cutouts and lightning arresters for protection.

69 kV (?) Transmission pole with underbuilt single phase distribution line dead ending at transformer drop for service to serveral customers.

Gang operated air break switch poles.

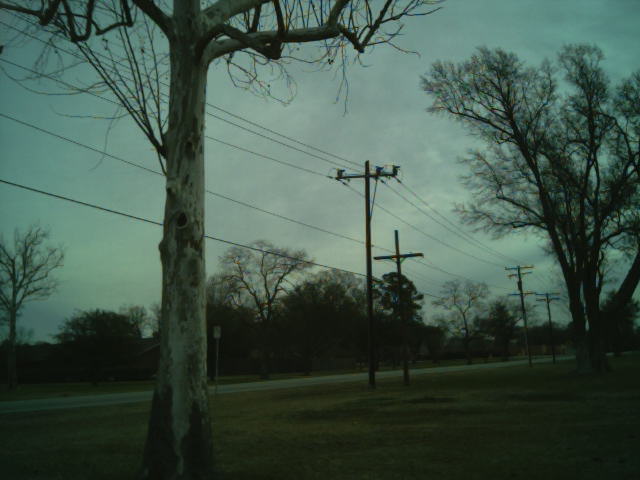

poles

Gang operated air break switch poles.

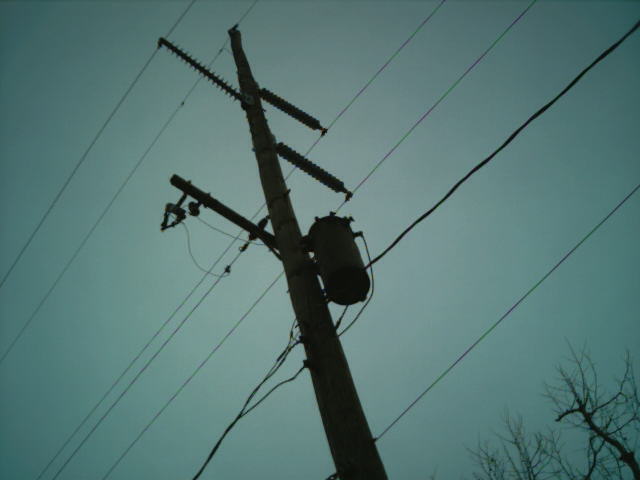

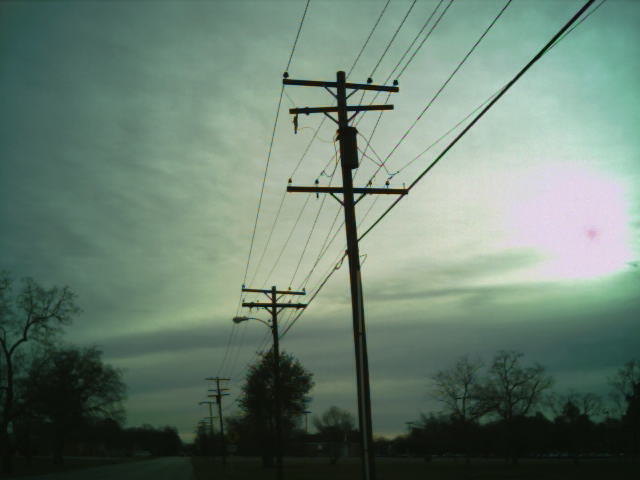

Three phase distribution pole with transformer and secondaries on crossarm.

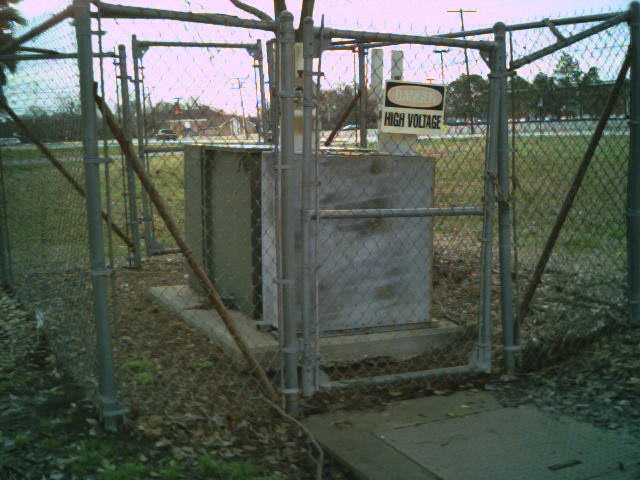

old transformer box

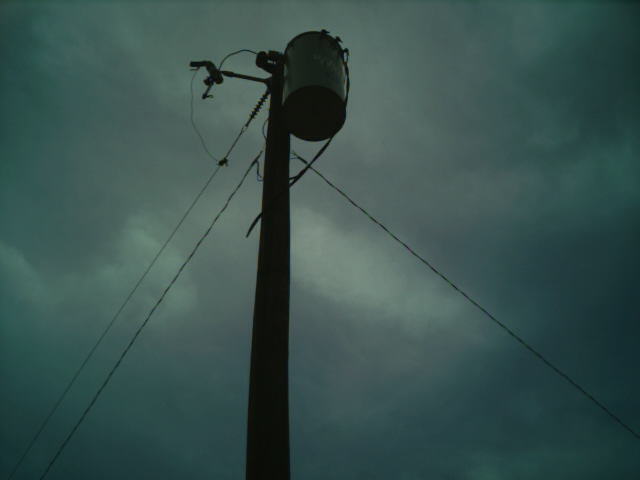

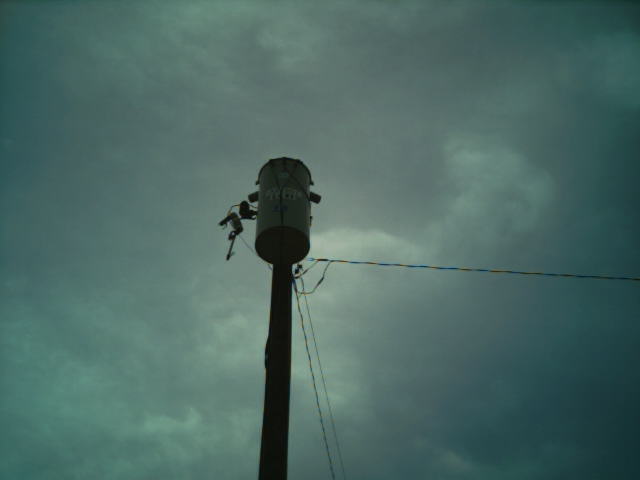

Single phase 2.4 kV transformer. Note cutout is open, transformer is not energized. Service wire to the right comes from another transformer. (Looks like they may have just installed this one for something ready to be built?) (same as first three photos)

2.4 kV transformer on pole (same as first three photos)
