Railroad Signal Circuit Markers

Insulators Home > My Collection > Miscellaneous > Railroad Signal Circuit Markers



Usage: These were nailed to crossarms beneath each wire to denote the railroad signal circuit connected to it.



Norfolk Southern Railroad at Mitchell, Illinois

Material: Metal (aluminum)

Year: unknown

Size: 1 inch diameter

Acquired: July 20, 2004 - gift from Pat S.

Notes: from poles near the crossing of the Norfolk Southern and Alton Southern railroads

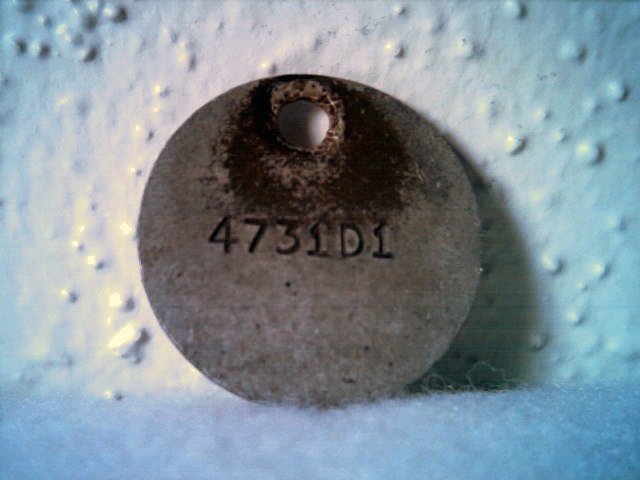

4731D1

Marking: 4731D1
Meaning: Mile 473, Pole 1, Signal D1

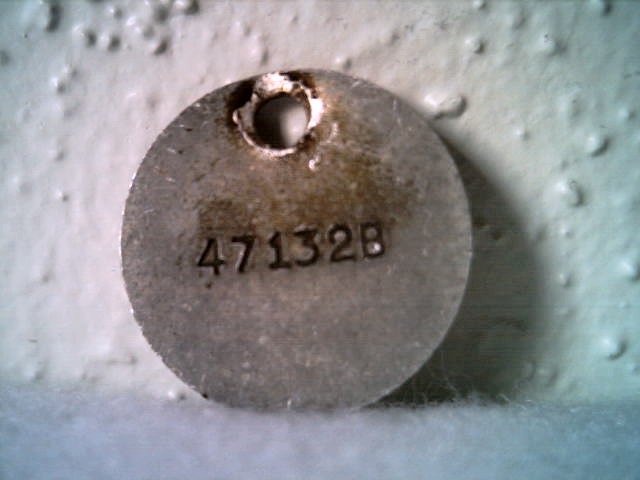

47132B

Marking: 47132B
Meaning: Mile 471, Pole 3, Signal 2B

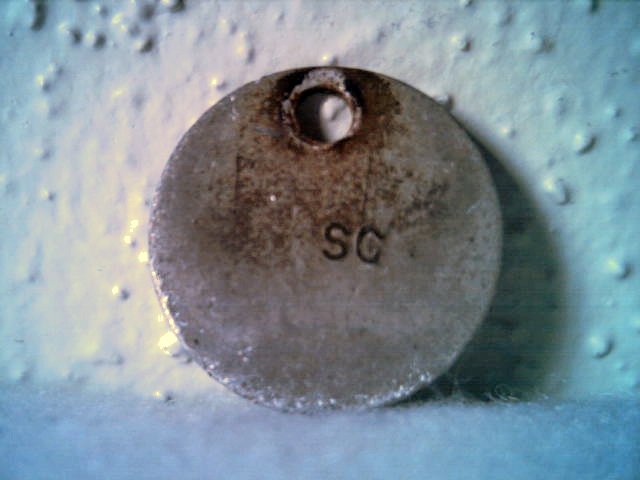

SC

Marking: SC
Meaning: Signal Circuit

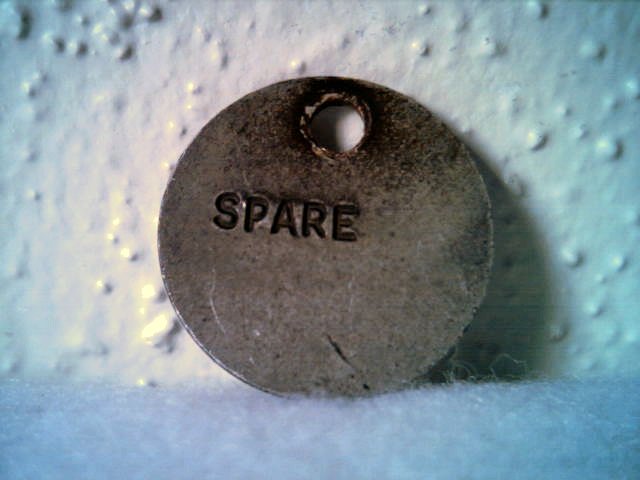

SPARE

Marking: SPARE
Meaning: spare line?

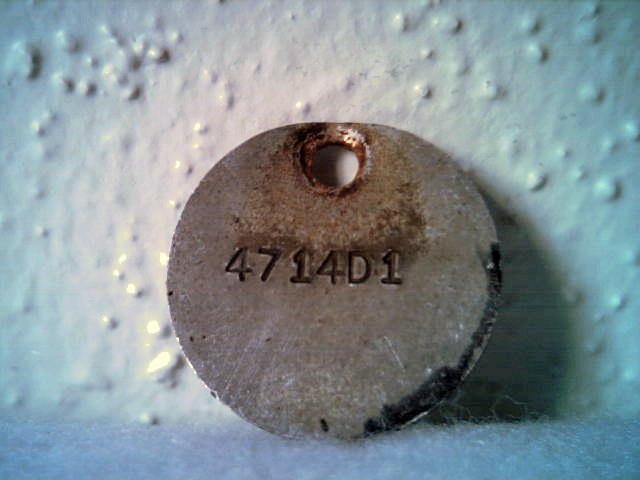

4714D1

Marking: 4714D1
Meaning: Mile 471, Pole 4, Signal D1

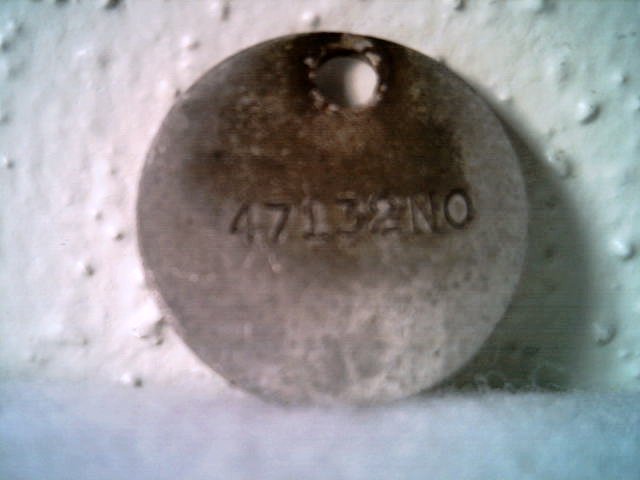

47132N0

Marking: 47132N0
Meaning: Mile 471, Pole 3, Signal 2N0

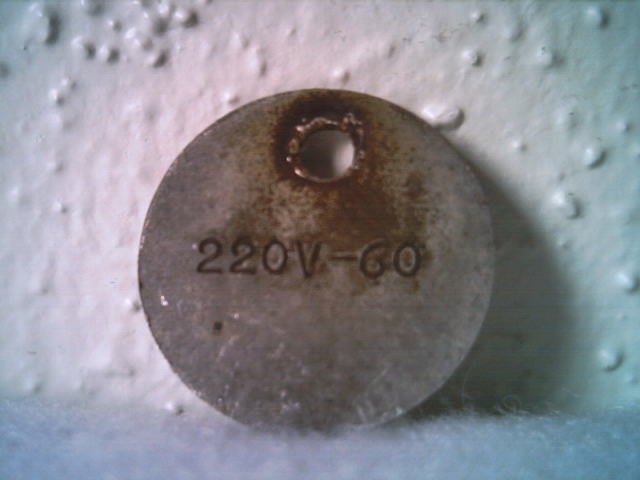

220V-60

Marking: 220V-60
Meaning: 220 volts, at 60 hertz (signal line voltage)

back of prev.

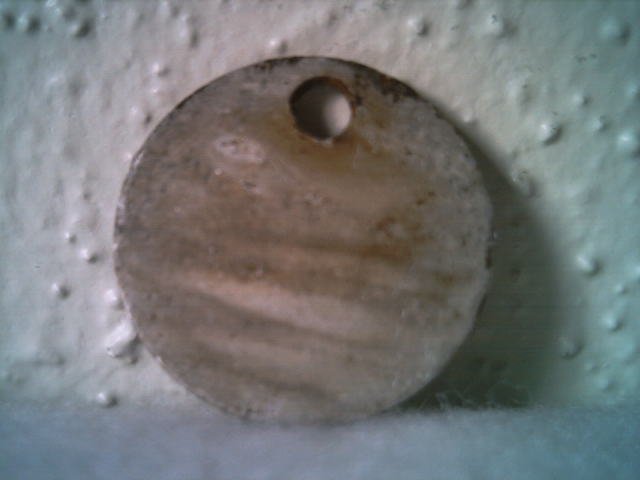

Marking: none (back of prev.)
Meaning: the rust patterns make it look kinda like Jupiter, I think

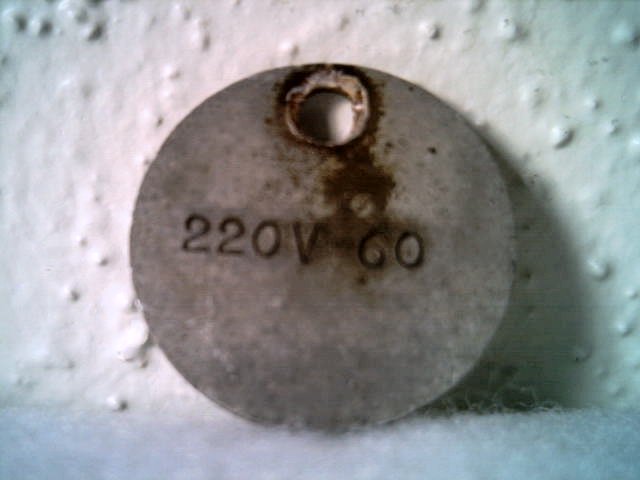

220V-60

Marking: 220V-60
Meaning: 220 volts, at 60 hertz (signal line voltage)

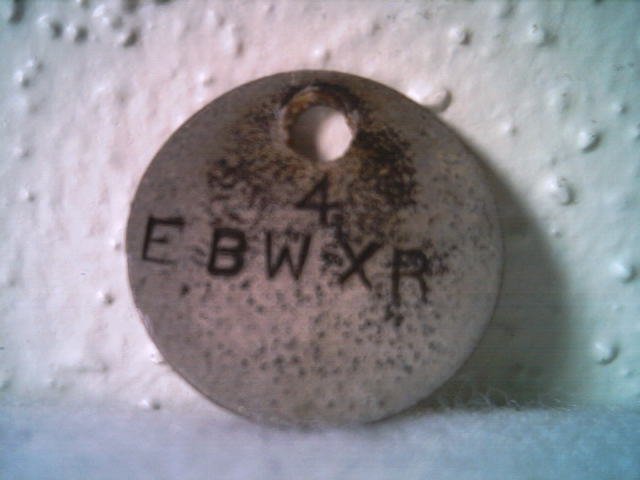

4 EBWXR

Marking: 4 EBWXR (back: 3x 4x 9x)
Meaning: unknown

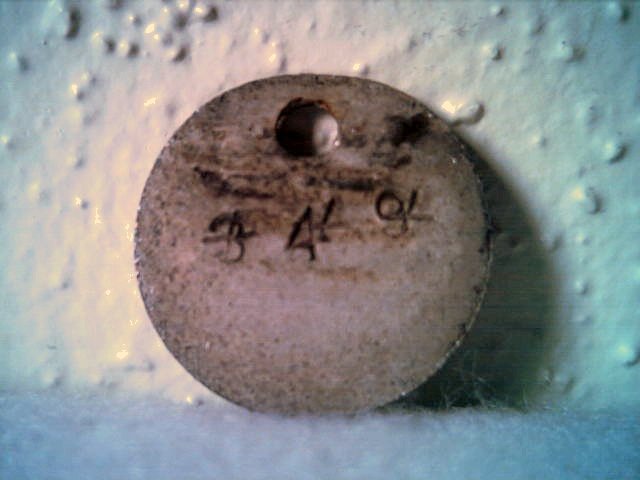

3x 4x 9x (back of prev.)

Marking: 3x 4x 9x (back of prev.)
Meaning: unknown

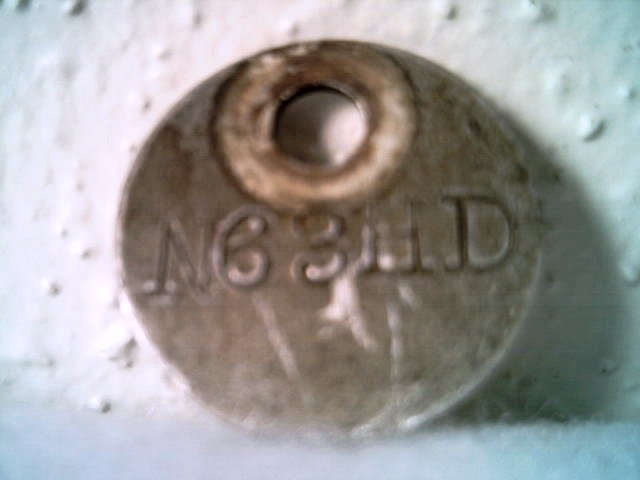

N63HD

Marking: N63HD
Meaning: unknown



CSX Transportation Railroad at Caseyville, Illinois

Material: Metal (aluminum)

Year: unknown (taken down in 1998)

Size: 1.25 inch diameter

Acquired: July 20, 2004 - gift from Pat S.

Notes: the larger second hole was probably to provide the option of hanging the tag directly on the wire; from poles taken down in 1998

Photo of the 327 mile marker near where these came from

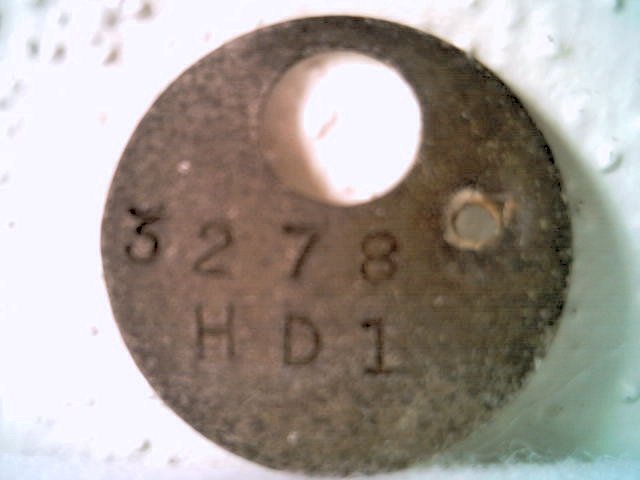

3278 HD1

Marking: 3278 HD1
Meaning: Mile 327, Pole 8, Signal HD1

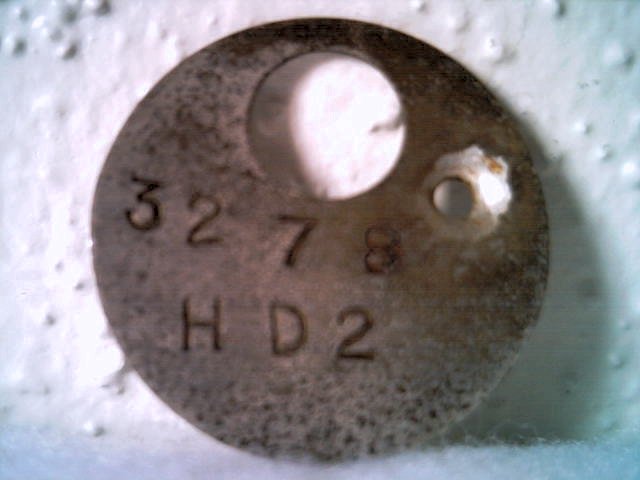

3278 HD2

Marking: 3278 HD2
Meaning: Mile 327, Pole 8, Signal HD2

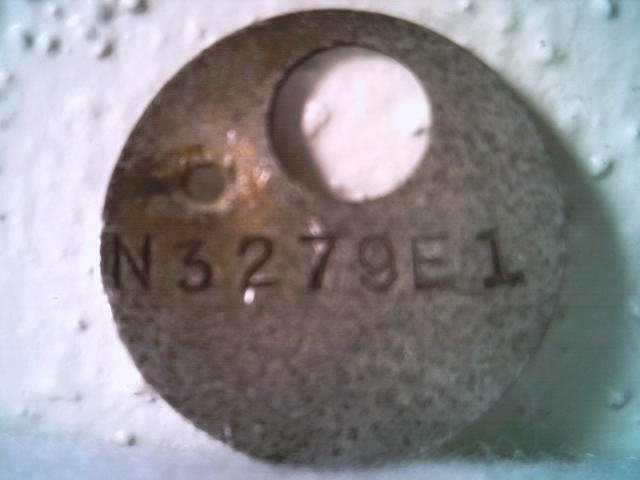

N3279E1

Marking: N3279E1
Meaning: Mile Number 327, Pole 9, Signal E1
