Synthetic Products 17x11 Cable Spacer

Insulators Home > My Collection > Miscellaneous > Synthetic Products 17x11 Cable Spacer

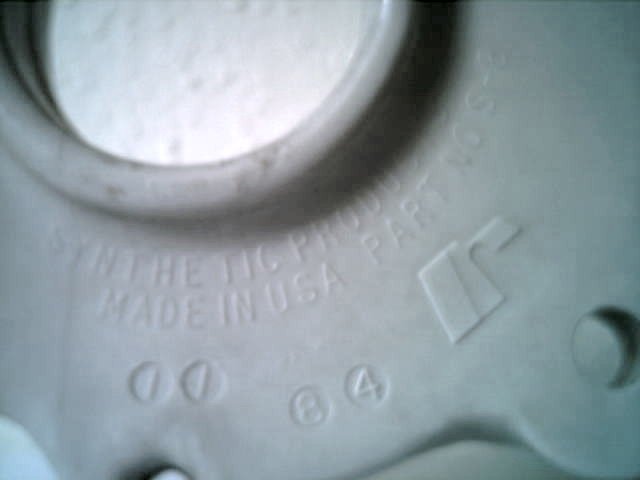

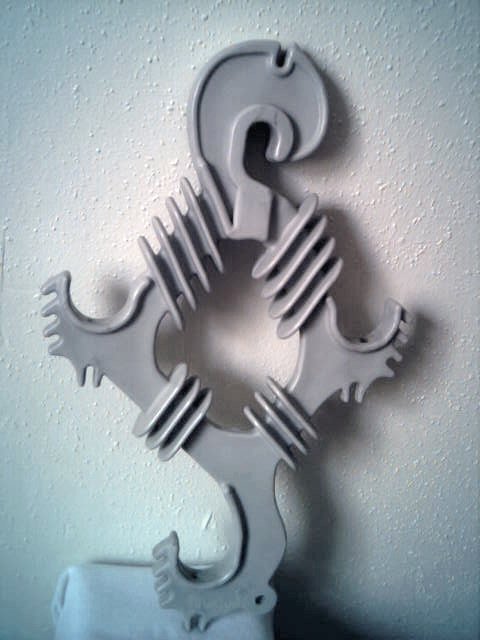

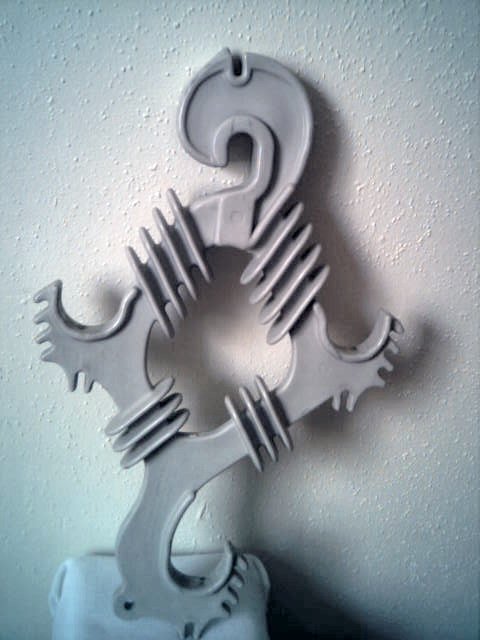

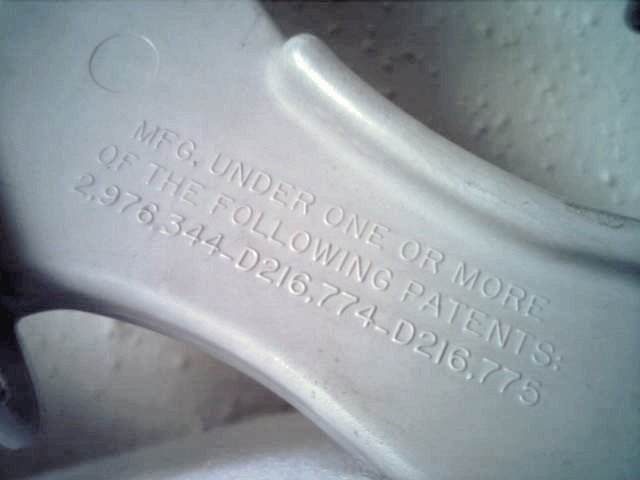

Synthetic Products 17x11 Cable Spacer - front view Synthetic Products 17x11 Cable Spacer - rear view Synthetic Products 17x11 Cable Spacer - marking close-up Synthetic Products 17x11 Cable Spacer - marking close-up

Material: Plastic

Manufacturer: Synthetic Products

Mnrf Code: S-8

Year: 1970-1980s/90s

Size: 17 inch height; 11 inch width; 1.375 inch thick

Usage: hanging from a 'messenger wire', supported the three power phases' cables overhead

Marking: (Front) SYNTHETIC PRODUCTS / MADE IN USA  PART NO S-8 / ['ir' logo] (Rear) MFG. UNDER ONE OR MORE / OF THE FOLLOWING PATENTS: / 2,976,344 - D216,774 - D216,775

Acquired: July 20, 2004 - gift from Pat S.

Notes: retrieved in Spring 2004 from a 7.2/12.4 kV Illinois Power line, in Glen Carbon, IL; designed for 15 kV
